Precision rack / CLASSIC range straight teeth

Precise ranslation of light loads, normal duty


Precision Material Core hardness Surface hardness Teeth Faces
(mm/m)

(mm)
ISO 7 C45 >650N/mm² 20 HRC Cut Milled 0.05 0.05
Standard available modules
1, 1.5, 2, 3, 4, 5, 6, 8, 10

Module  1 1,5 2 3 4 5 6 8 10
Individual pitch error
 (mm)
± 0.011 ± 0.011 ± 0.011 ± 0.012 ± 0.014 ± 0.014 ± 0.014 ± 0.016 ± 0.016
Cumulative pitch error (on 1,000 mm) < 0.045 < 0.045 < 0.045 < 0.050 < 0.056 < 0.056 < 0.056 < 0.063 < 0.063

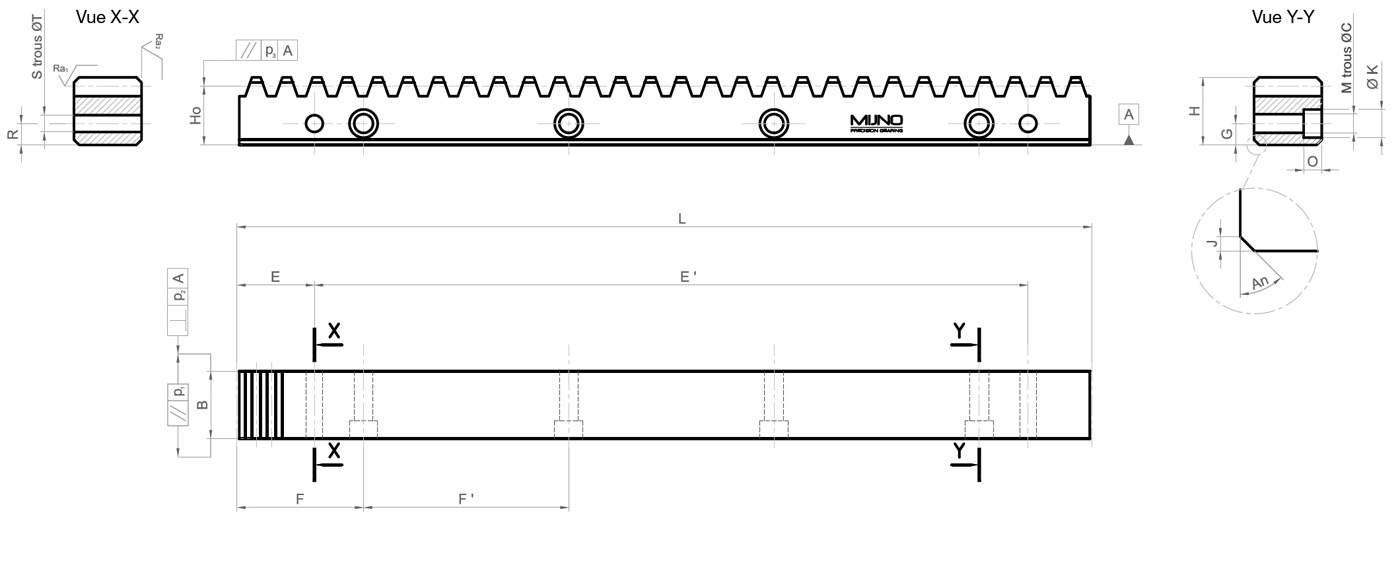

Click on the picture to open in a new window.


Module

Number of teeth

L

B

H

Ho

I

E

E'

F

F'

R

S

T

M

G

O

C

K

J

An

Reference

1

160

502.65

15

15

14

-

-

-

-

-

-

-

-

-

-

-

-

-

1

45°

CLA-D-1-500

320

1005.3

15

15

14

-

-

-

-

-

-

-

-

-

-

-

-

-

1

45°

CLA-D-1-1000

1.5

107

504.23

20

20

19

-

-

-

-

-

-

-

-

-

-

-

-

-

1

45°

CLA-D-1.5-500

214

1008.45

20

20

19

-

-

-

-

-

-

-

-

-

-

-

-

-

1

45°

CLA-D-1.5-1000

2

80

502.66

24

24

22

-

31.3

440.1

62.8

125.7

8

2

5.7

4

8

7

7

11

2

45°

CLA-D-2-500

160

1005.3

24

24

22

-

31.3

942.7

62.8

125.7

8

2

5.7

8

8

7

7

11

2

45°

CLA-D-2-1000

3

54

508.94

29

29

26

-

34.4

440.1

63.6

127.2

9

2

7.7

4

9

9

10

15

2

45°

CLA-D-3-500

108

1017.9

29

29

26

-

34.4

949.1

63.6

127.2

9

2

7.7

8

9

9

10

15

2

45°

CLA-D-3-1000

4

40

502.7

39

39

35

-

37.5

427.7

62.8

125.7

12

2

7.7

4

12

9

10

15

2

45°

CLA-D-4-500

80

1005.3

39

39

35

-

37.5

930.3

62.8

125.7

12

2

7.7

8

12

9

10

15

2

45°

CLA-D-4-1000

5

32

502.6

49

49

44

-

30.1

442.4

62.8

125.7

12

2

11.7

4

12

13

14

20

2

45°

CLA-D-5-500

64

1005.3

49

49

44

-

30.1

945

62.8

125.7

12

2

11.7

8

12

13

14

20

2

45°

CLA-D-5-1000

6

27

508.9

59

59

53

-

31.4

446.1

63.6

127.2

16

2

15.7

4

16

17

18

26

2

45°

CLA-D-6-500

54

1017.8

59

59

53

-

31.4

955

63.6

127.2

16

2

15.7

8

16

17

18

26

2

45°

CLA-D-6-1000

8

20

502.65

79

79

71

-

26.6

449.45

62.8

125.7

25

2

19.7

4

25

21

22

33

2

45°

CLA-D-8-500

40

1005.3

79

79

71

-

26.6

952

62.8

125.7

25

2

19.7

8

25

21

22

33

2

45°

CLA-D-8-1000

10

16

502.65

99

99

89

-

125.66

-

62.83

125.7

32

2

19.7

4

32

32

33

48

2

45°

CLA-D-10-500

32

1005.3

99

99

89

-

125.66

753.96

62.83

125.7

32

2

19.7

8

32

32

33

48

2

45°

CLA-D-10-1000


Number of
teeth
of the
pinion



Module
1

Module
1,5

Module
2

Module
3

Module
4

Module
5

Module
6

Module
8

Module
10

21

Transmittable
force
(Ft) (N)

90

280

515

1490

3515

6530

11185

24140

41240

Torque
(T) (Nm)

0.9

4.4

11

47

150

343

700

2025

4300

Axial force
(Fa) (N)

-

-

-

-

-

-

-

-

-

Radial force
(Fr) (N)

35

100

190

540

1280

2380

4070

8790

15000

25

Transmittable
force
(Ft) (N)

140

425

770

2180

5130

9260

15000

31730

53900

Torque
(T) (Nm)

1.8

8

19

80

260

580

1125

3173

6738

Axial force
(Fa) (N)

-

-

-

-

-

-

-

-

-

Radial force
(Fr) (N)

51

155

280

790

1870

3370

5500

11600

19600

30

Transmittable
force
(Ft) (N)

210

600

1130

3080

7100

12580

20280

42060

70960

Torque
(T) (Nm)

3.2

14

34

140

425

945

1825

5050

10650

Axial force
(Fa) (N)

-

-

-

-

-

-

-

-

-

Radial force
(Fr) (N)

76

220

410

1120

2600

4600

7390

15300

25850
